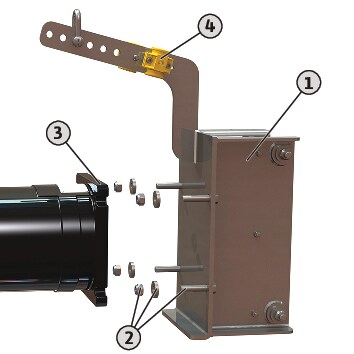

Replacing the frame

1

Frame

2

4x fixation material: Hexagon head screw, washer, hexagon nut

3

Motor flange

4

Cable brackets for strain relief

  1. Mixer set down on a firm surface and secured.
  2. Motor supported in such a way that the frame can easily be changed.
  3. Tools are ready for use.
  1. Open the cable brackets and take out the connection cable.
  2. Undo and remove hexagon nuts.
  3. Remove washers from the hexagon head screws.
  4. Remove the frame from the motor flange.
  5. Clean dirt from the motor flange, e.g. deposits, old sealing material.
  6. Remove hexagon head screws from the frame and insert them in the new frame.
  7. Coat the hexagon head screws with thread-locking fluid.
  8. Place the new frame on the motor flange.
  9. Place washers on the hexagon head screws.
  10. Attach and firmly tighten hexagon nuts. Max. tightening torque: see appendix.
  11. Lay connection cable in the cable bracket and close the cable bracket. CAUTION! Do not tighten the cable bracket yet!
  12. Align the connection cable: The connection cable should be slightly bent, it should not be taut.
  13. Close the cable brackets tightly.
  14. Apply corrosion protection (e.g. Sikaflex):
    - Sealing joint between motor flange and frame.
    - Fill slots on the motor flange up to the washer.
  1. Frame is changed.
